Energy Storage Product Center

Products and Solutions

Development, design, construction, operation, maintenance, and recycling of energy storage battery materials for energy storage power stations, utilizing wind solar energy storage multi energy collaborative control technology to achieve smooth and stable generation of new energy

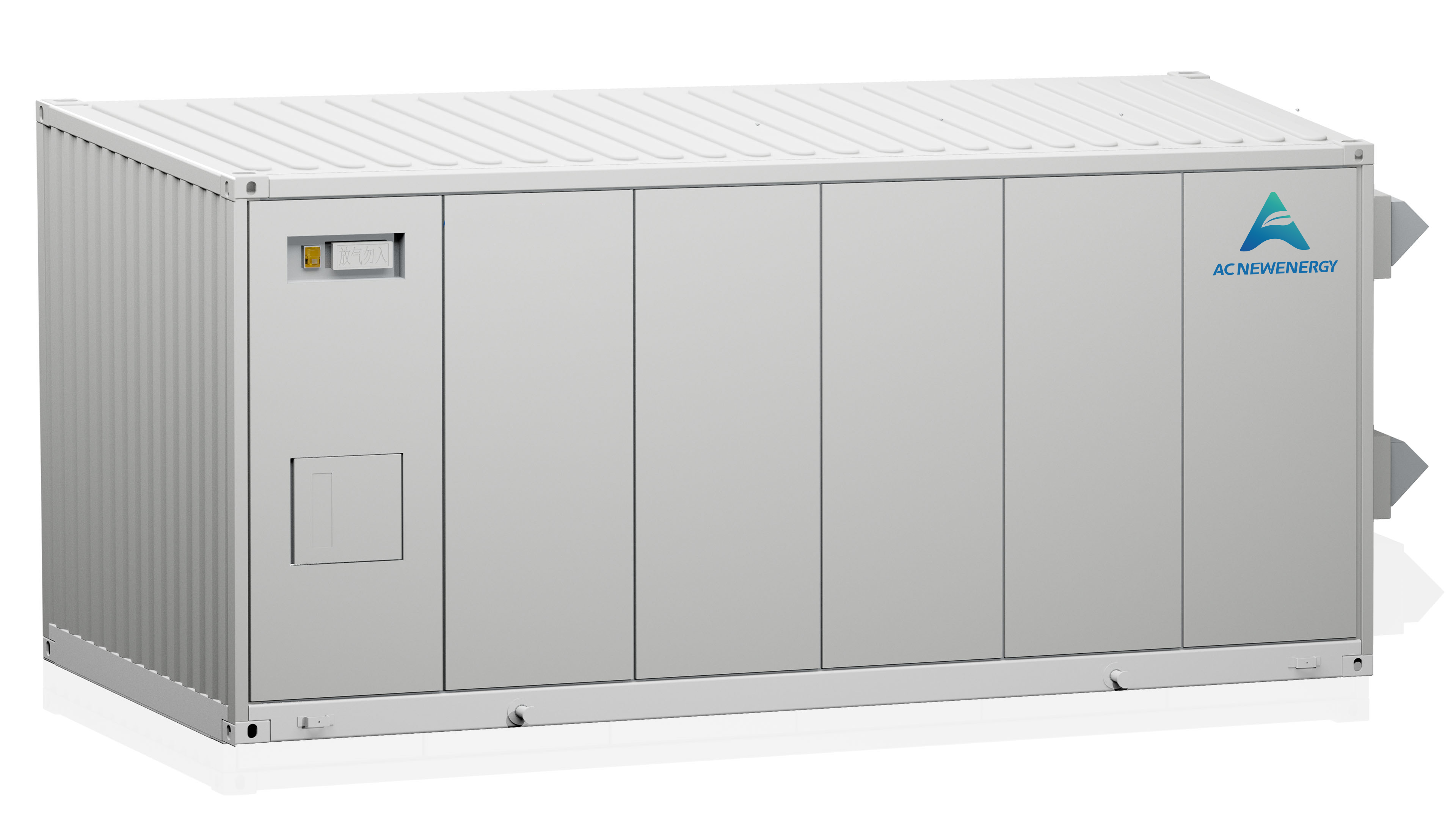

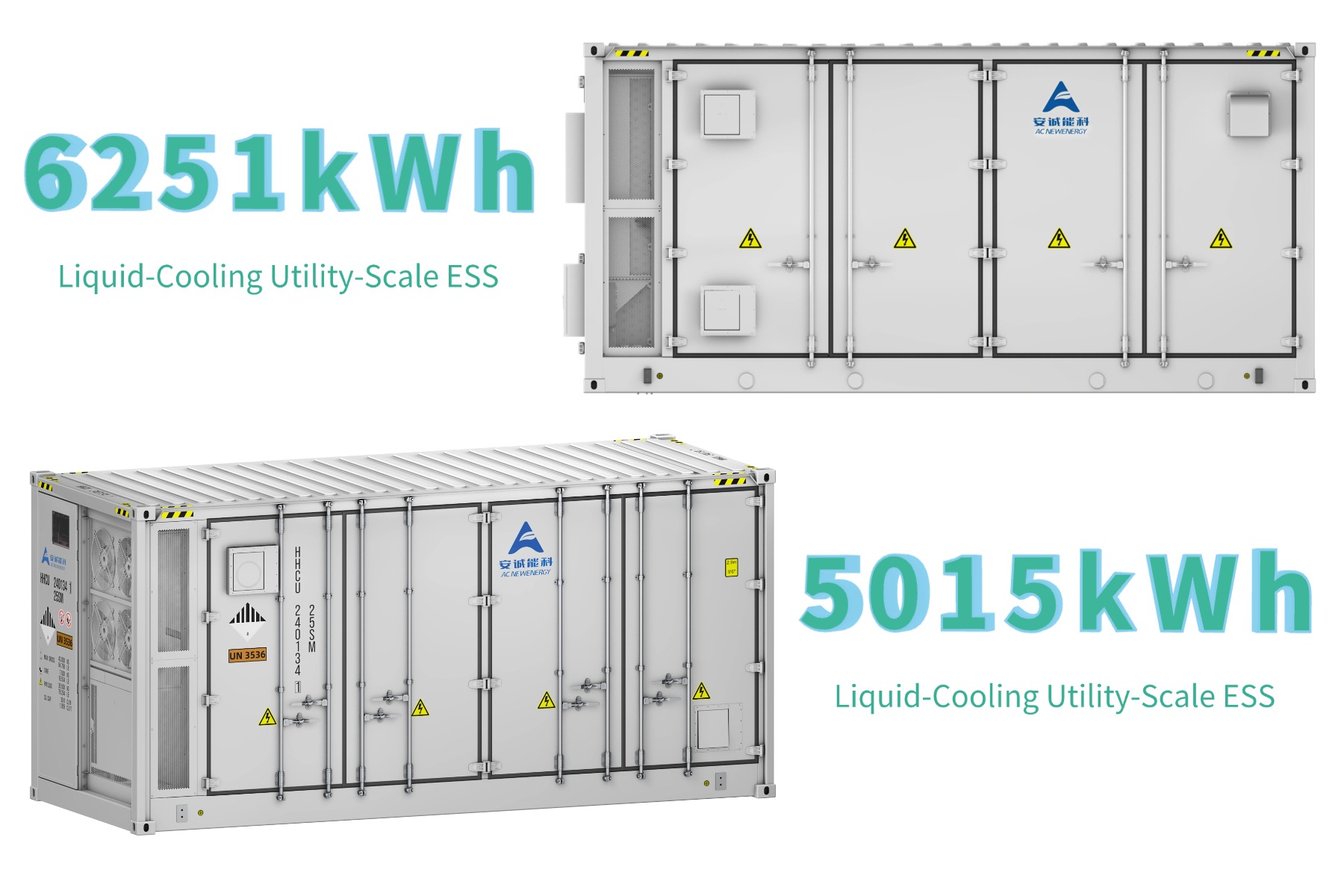

Battery Container ESS Series

Main models：ESS-C-20-5015D-L
Higher Energy Density：upgraded cell capacity, utilization of cell-to-pack technology, and optimized internal space
Safety & Reliability：Multiple level protection from cell to system；Reliable LFP technology with high cycle stability
Flexible Expansion：Reserved DC expansion interface；Flexible configuration on demand
Smart Management：Remote monitoring & updates；Smart energy management system

Learn More

Product Introduction

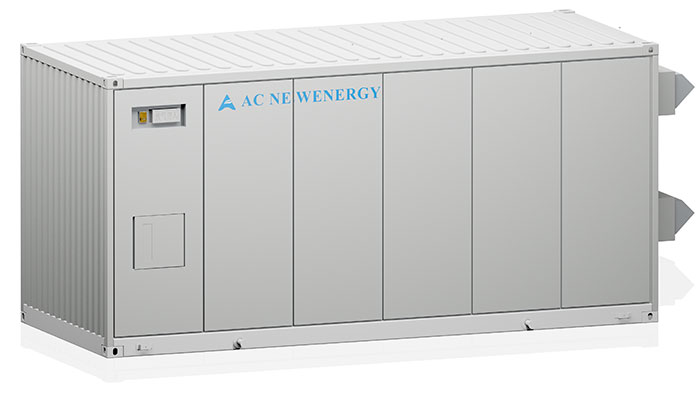

The product is a liquid-cooling containerized ESS, featuring high efficiency, high integration, high safety, and high reliability. It utilizes 314Ah LFP battery cells from top-tier domestic brands.

Designed as an integrated 20-foot container, the system houses energy storage battery clusters, power control cabinets, temperature control systems, and fire protection systems. Its modular architecture—spanning battery cells, modules, racks, and the overall system—is well-structured, clearly organized, and fully functional. It includes comprehensive components such as battery racks, a battery management system (BMS), temperature control, lighting, fire detection and automatic suppression, security, emergency response, and surge protection.

This system is primarily designed for:

- Grid-side (independent/shared energy storage),

- Generation-side(peak shaving and frequency regulation for renewable energy),

- User-side (commercial and industrial energy storage).

Product Features

Intelligent Thermal Management

AI algorithm-based dynamic temperature control strategy. Maintains cell temperature differential ≤5°C. Automatically adjusts cooling power based on ambient temperature and load, reducing energy consumption by 15%.

Electrical Safety

Three-tiered fuse protection + Insulation monitoring + Busbar temperature detection.

Fire Safety

Three-layer fire protection system with pack-level precision fire suppression + Multi-level barriers.

Wide Operational Range

-20°C to 50°C (Suitable for extreme cold, high-temperature, and high-humidity environments).

Flexible Configuration

20-foot standard container design supporting combination of two units for adaptable deployment scenarios.

Product Specifications

Model	ESS-C-20-5015D-L-2H
Battery Parameters
Rated Capacity	5MWh
Battery Voltage Range	1123.2V~1497.6V
Rated Voltage DC	1331.2V
Battery Type	LFP 3.2V / 314Ah
Battery Module	332.8V / 104.5kWh
System Configuration	12P416S
Charge and Discharge Rate	0.5P
Cooling Method	Liquid Cooling
General Data
Dimension (W×D×H)	6058mm×2438mm×2896mm
Weight	~43t
Operating Temperature	.-20°C ~ +45°C
Relative Humidity	0% ~ 95%
Altitude	≤2000m
IP Rating	IP55
Communication Protocols	IEC 61850, Modbus,TCP
Certifications
Certificates	IEC 62619, IEC 62477, IEC 63056, IEC 61000
Safe Transportation	UN38.3

Model	ESS-C-20-3343A-L1-2H
AC Input/Output
Rated Power	1720kW
Rated Voltage AC	690V，3P+PE
Rated Frequency	50Hz/60Hz
Power Factor	0.8(Leading)~0.8(Lagging)
Battery Parameters
Rated Capacity	3343kWh
DC Maximum Current	241A×8
Battery Type	LFP 3.2V / 314Ah
Rated Voltage DC	1331.2V
Rated Voltage Range	1164.8V~1497.6V
Battery Module	332.8V / 104.499kWh
System Configuration	8P416S
General Data
Dimension (W×D×H)	6058mm×2438mm×2896mm
Weight	~33000kg
Cooling Method	Liquid Cooling (DC Side)
IP Rating	IP54
Operating Temperature	.-20°C ~ +45°C
Relative Humidity	5% ~ 95%(Non-condensing)
Altitude	≤2000m
Noise Emission	≤75dB
Fire Extinguishing Media	Aerosol
Certificates	IE/CEN62477-1, IEC/EN 61000-6-2,1EC/EN 61000-6-4,1EC62619, G99,G100,AS47772,EN 50549-1,VDE-AR-N 4110,UN38 3

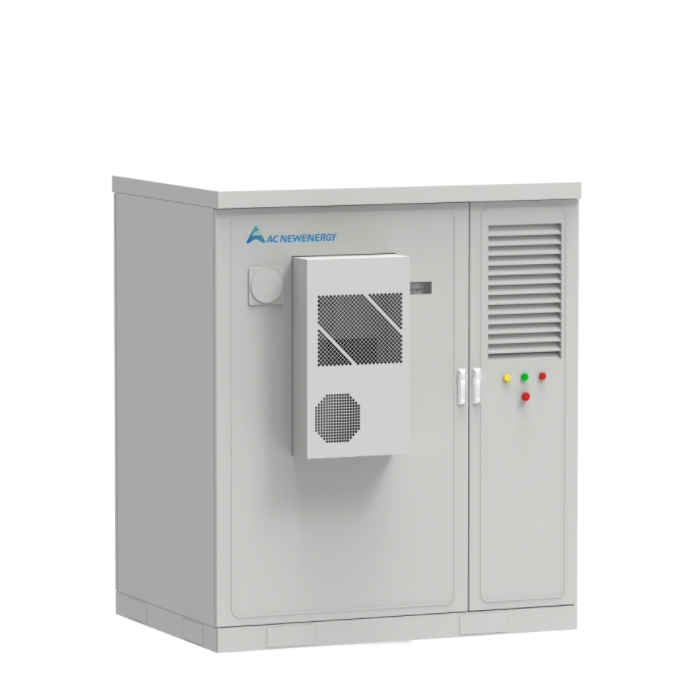

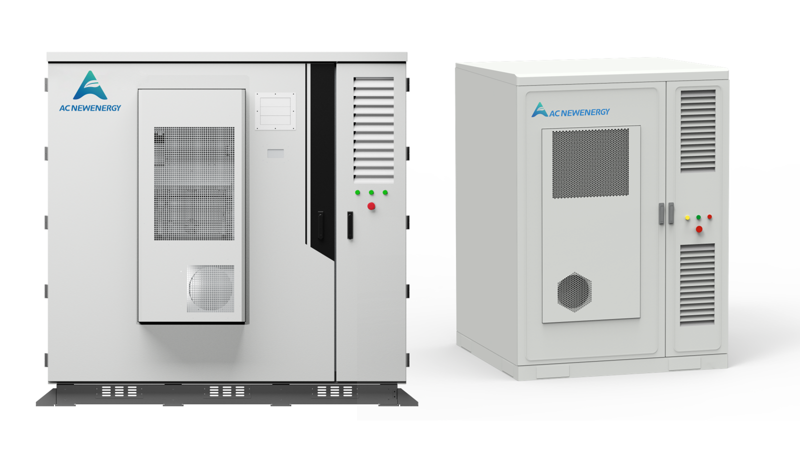

All-in-one Cabinet ESS Series

Main models：ESS-C-JG-L、ESS-C-JG-F
Safety & Reliability：Reliable LFP technology with high cycle stability；IP54 protection rating
Easily installation：perfect compact；Fast installation and convenient transportation
flexible Expansion：Reserved DC expansion interface；Flexible configuration on demand
Smart Management：Remote monitoring & updates；Smart energy management system

Learn More

Introduction-All-in-One Liquid-Cooled Cabinet ESS Series

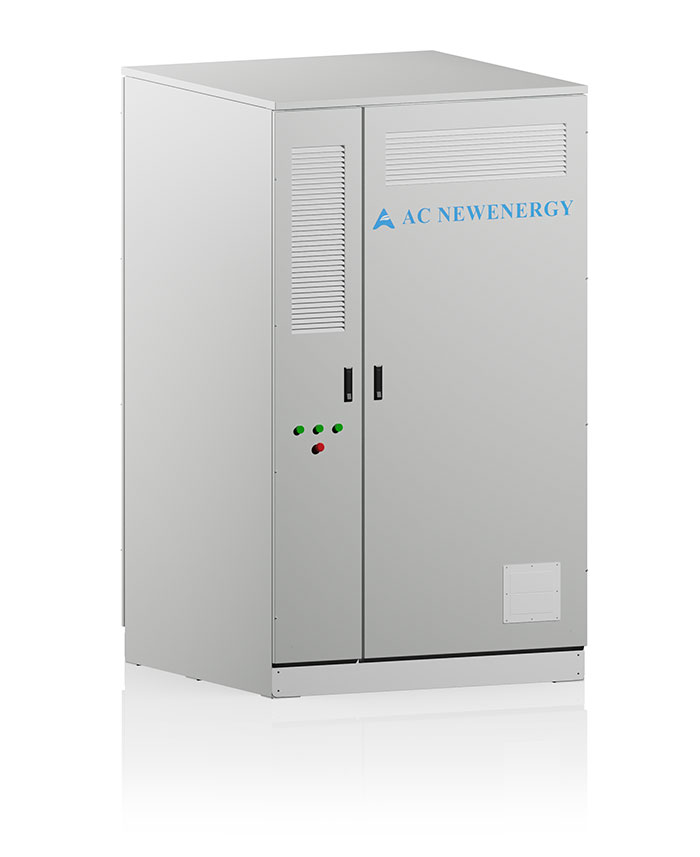

The product is an energy storage liquid cooling product suitable for industrial parks and commercial entities. The battery cell adopts a large-capacity energy LFP battery, and the system adopts intelligent thermal management technology to ensure safety and effectively extend the life of the system. The PACK-level detection perfluorohexanone fire protection technology is used to ensure the safe use of the product.

Introduction-All-in-One Air-Cooled Cabinet ESS Series

The product is an energy storage air-cooled product suitable for industrial parks and commercial entities. The battery cell adopts large-capacity energy LFP battery, and the battery pack adopts advanced air-cooling technology solution. Cabinet-level aerosol fire protection technology is adopted to ensure the safe use of the product.

Product Features-All-in-One Liquid-Cooled Cabinet ESS Series

Long-life, high-safety LFP battery cells.

Novel liquid-cooling thermal management technology extends battery lifespan.

PACK-level and cabinet-level targeted fire suppression technology ensures safety and reliability.

High product integration reduces on-site installation and commissioning time.

Standard-container shipping compatible; supports multi-unit parallel cabinet connection for flexible deployment.

Product Features-All-in-One Air-Cooled Cabinet ESS Series

Long-life, high-safety LFP battery cells.

Intelligent air-cooling technology with autonomous adjustment.

Multi-layer protection strategy for safety and reliability.

Plug-and-play design with zero on-site debugging.

Supports multi-unit cabinet combination for flexible configuration.

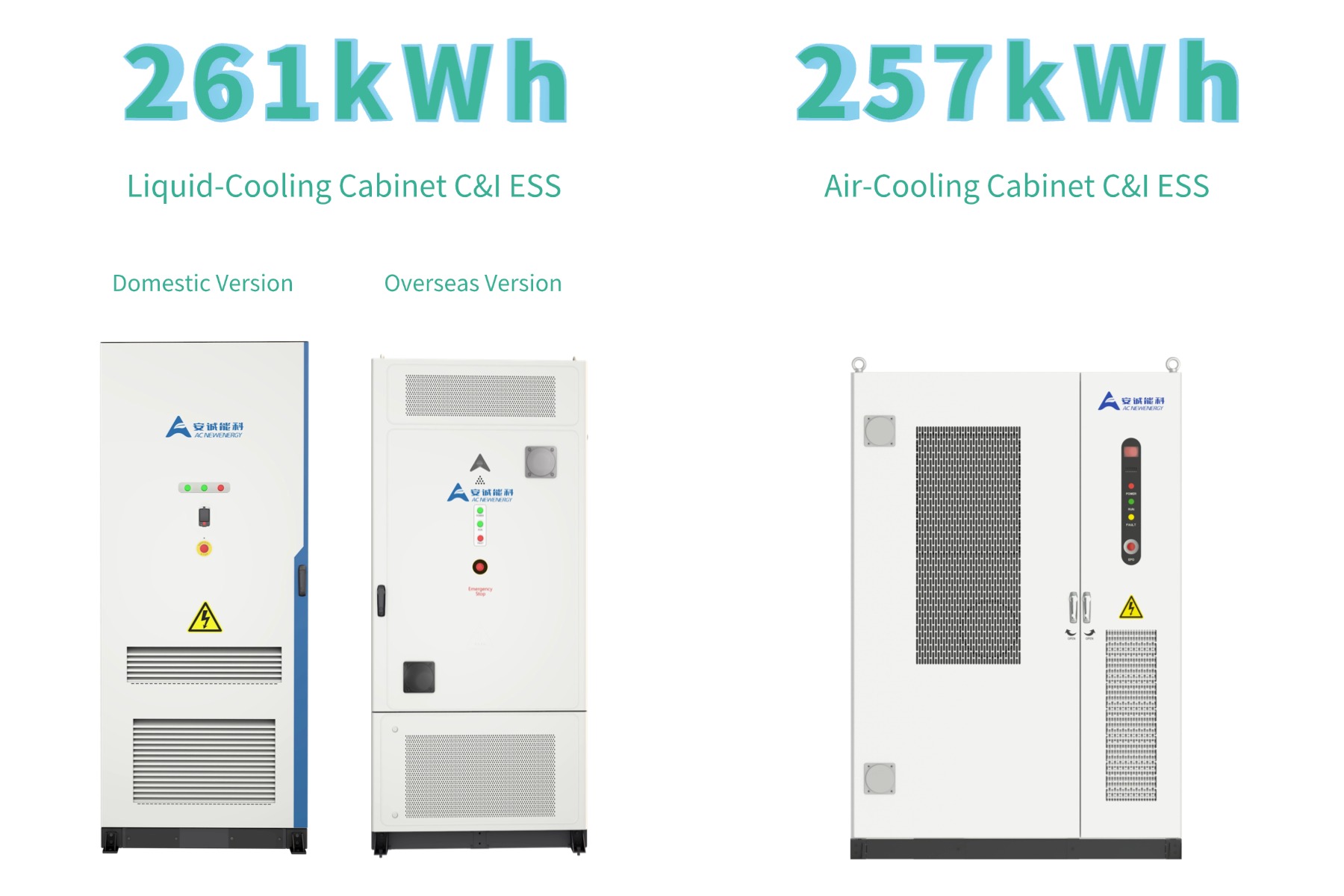

Product Specifications--All-in-One Liquid-Cooled Cabinet ESS Series

Model	ESS-C-JG261A-L1-2H0
AC Input/Output
Rated Power	125kW
Rated Voltage AC	230V/400V，3P+N+PE
Rated Frequency	50Hz/60Hz
Power Factor	0.8(Leading)~0.8(Lagging)
Battery Parameters
Rated Capacity	261kWh
DC Maximum Current	172A
Battery Type	LFP 3.2V / 314Ah
Rated Voltage DC	832V
Rated Voltage Range	728V~936V
Battery Module	166.4V / 52.249kWh
System Configuration	1P260S
General Data
Dimension (W×D×H)	1400mm×1300mm×2150mm
Weight	~2700kg
Cooling Method	Liquid-Cooling
IP Rating	IP54
Operating Temperature	.-20°C ~ +45°C
Relative Humidity	5% ~ 95%(Non-condensing)
Altitude	≤2000m
Noise Emission	≤75dB
Fire Extinguishing Media	Aerosol
Certificates	IE/CEN62477-1, IEC/EN 61000-6-2,1EC/EN 61000-6-4,1EC62619, G99,G100,AS47772,EN 50549-1,VDE-AR-N 4105,UN38 3

Product Parameters--All-in-One Air-Cooled Cabinet ESS Series

Model	ESS-C-JG257A-F2-2H0	ESS-C-JG514A-F2-2H0
AC Input/Output
Rated Power	125kW	250kW
Rated Voltage AC	230V/400V，3P+N+PE
Rated Frequency	50Hz/60Hz
Power Factor	0.8(Leading)~0.8(Lagging)
Battery Parameters
Rated Capacity	257kWh	514kWh
DC Maximum Current	174A	174A*2
Battery Type	LFP 3.2V / 314Ah
Rated Voltage DC	819.2V
Rated Voltage Range	716.8V~921.6V
Battery Module	51.2V / 16.07kWh
System Configuration	1P256S	2P256S
General Data
Dimension (W×D×H)	2100mm×1500mm×2060mm	2100mm×2520mm×2050mm
Weight	~2900kg	~6100kg
Cooling Method	Air--Cooling
IP Rating	IP54
Operating Temperature	.-20°C ~ +45°C
Relative Humidity	5% ~ 95%(Non-condensing)
Altitude	≤2000m
Noise Emission	≤75dB
Fire Extinguishing Media	Aerosol
Certificates	IE/CEN62477-1, IEC/EN 61000-6-2,1EC/EN 61000-6-4,1EC62619, G99,G100,AS47772,EN 50549-1,VDE-AR-N 4105,UN38 3

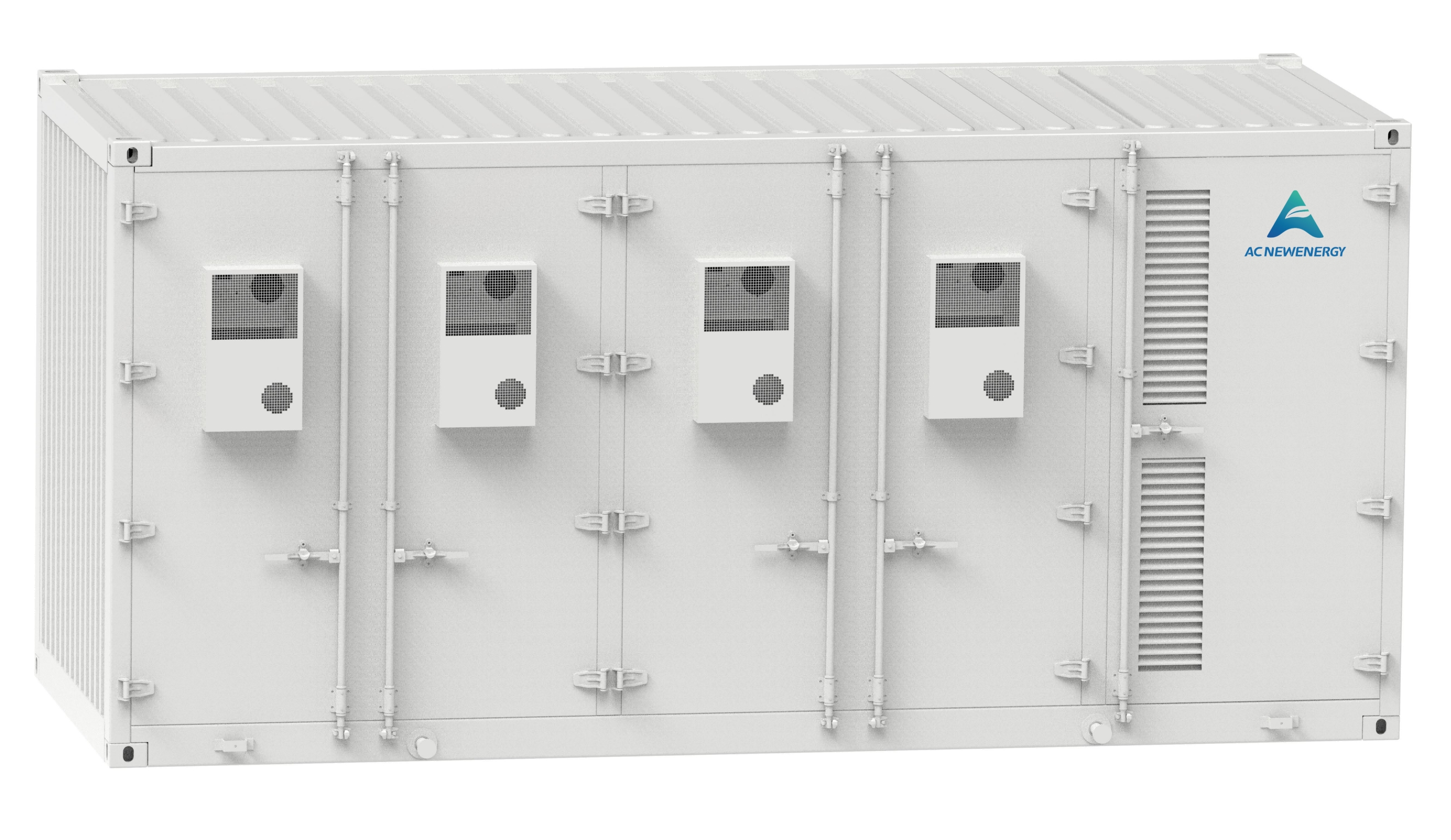

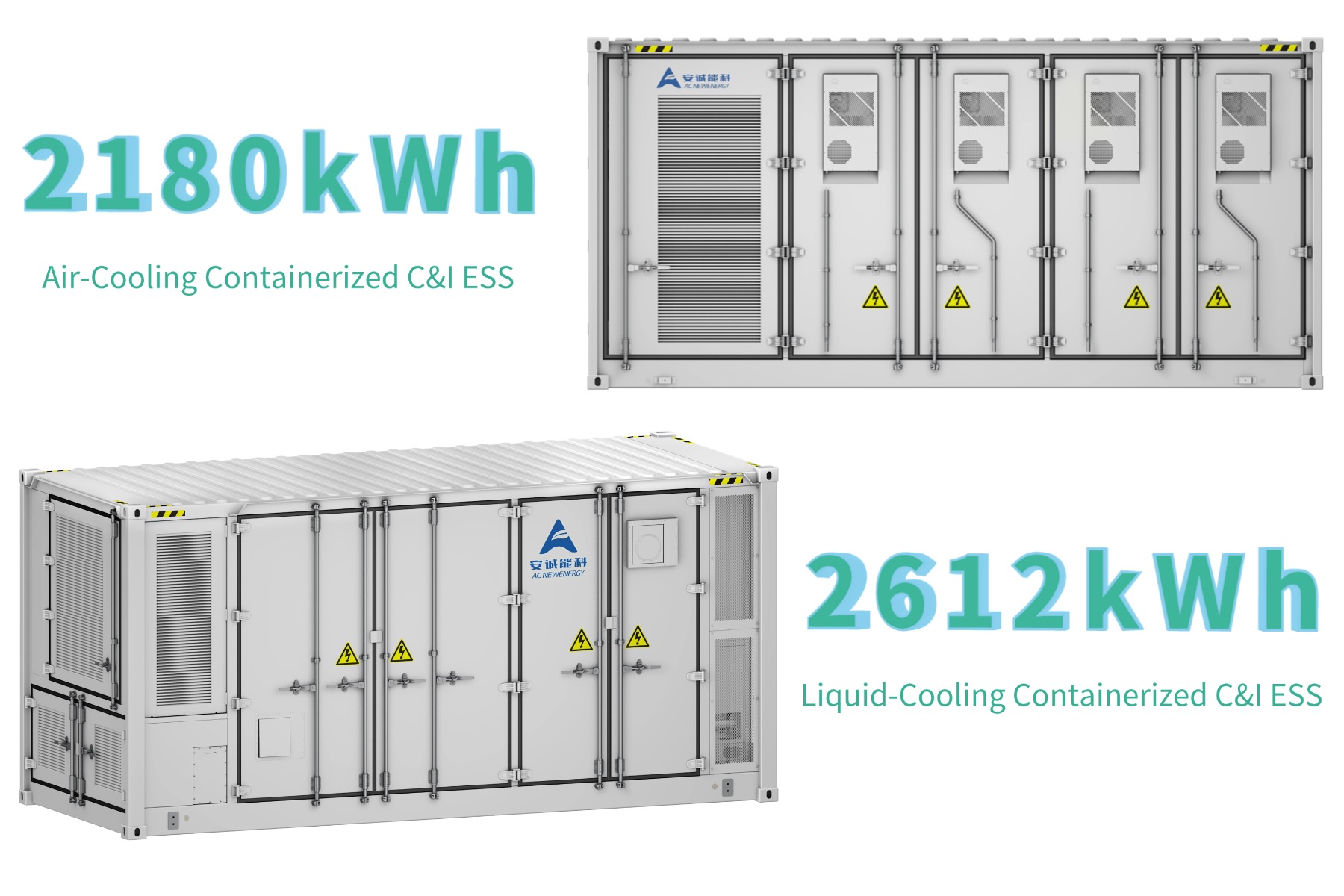

All-in-one Container ESS Series

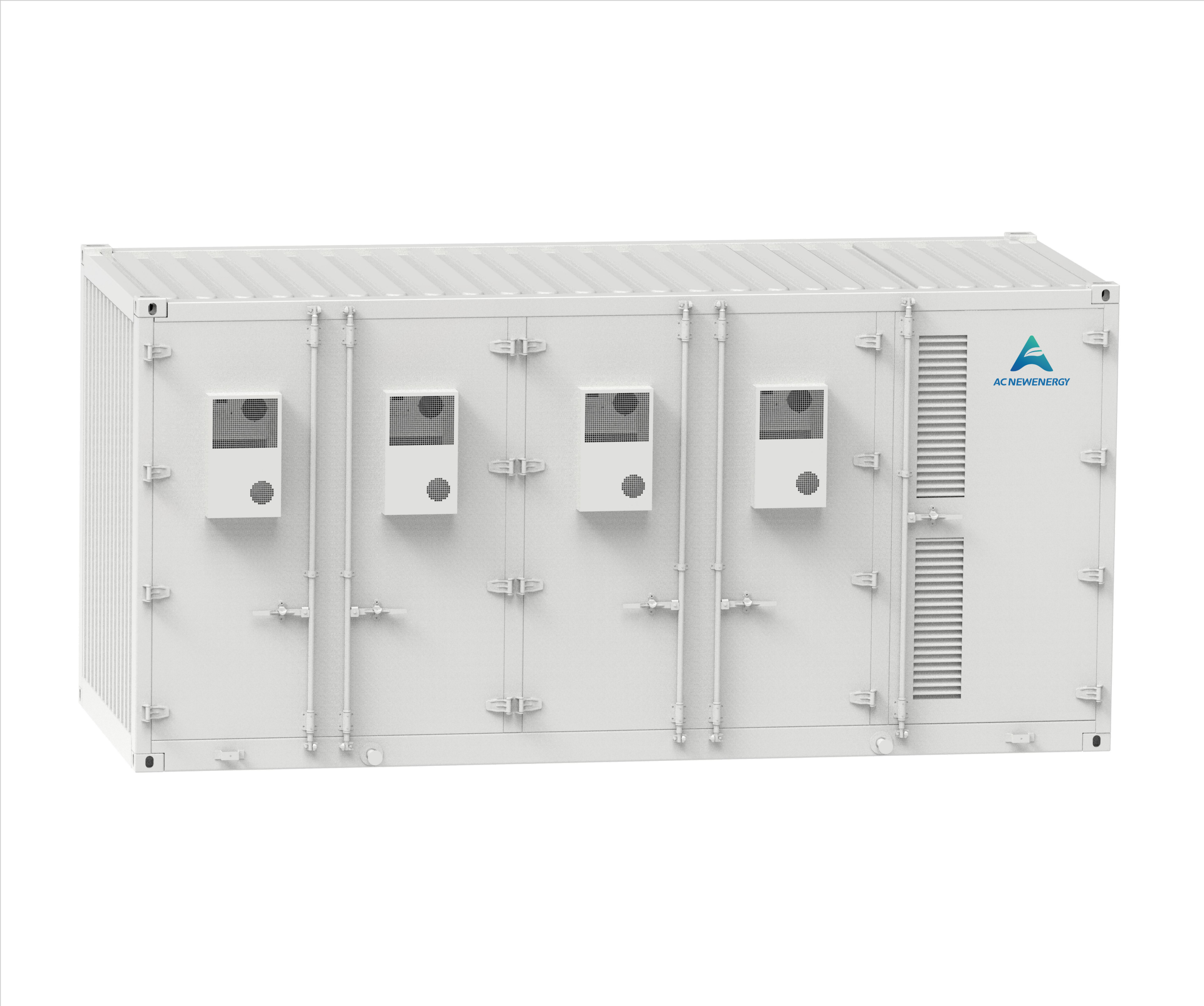

The product is an integrated air-cooled container energy storage system with a capacity of 2180kWh and a rated output of 960kW. The battery cell adopts large-capacity energy lithium iron phosphate battery, and the battery PACK adopts advanced liquid cooling technology scheme, and at the same time adopts aerosol fire protection technology to ensure the life and safety of the product.

Learn More

Product Features

Higher Energy Density：upgraded cell capacity, utilization of cell-to-pack technology, and optimized internal space.

Safety & Reliability：Multiple level protection from cell to system；Reliable LFP technology with high cycle stability.

Optimized Modular Design：Scalable modular design, made to fit any project size or application.

Smart Management：Remote monitoring & updates；Smart energy management system.

Product Parameters--All-in-One Liquid-CooledContainer ESS Series

Model	ESS-C-20-3134A-L1-2H
AC Input/Output
Rated Power	1500kW
Rated Voltage AC	230V/400V，3P+N+PE
Rated Frequency	50Hz/60Hz
Power Factor	0.8(Leading)~0.8(Lagging)
Battery Parameters
Rated Capacity	3134kWh
DC Maximum Current	172A×12
Battery Type	LFP 3.2V / 314Ah
Rated Voltage DC	832V
Rated Voltage Range	728V~949V
System Configuration	12P260S
General Data
Dimension (W×D×H)	6058mm×2438mm×2896mm
Weight	~38000kg
Cooling Method	Liquid Cooling (DC Side)
IP Rating	IP54
Operating Temperature	.-20°C ~ +40°C
Relative Humidity	5% ~ 95%(Non-condensing)
Altitude	≤2000m
Noise Emission	≤75dB
Fire Extinguishing Media	Aerosol
Certificates	IE/CEN62477-1, IEC/EN 61000-6-2,1EC/EN 61000-6-4,1EC62619, G99,G100,AS47772,EN 50549-1,VDE-AR-N 4110,UN38 3

Product Parameters--All-in-One Liquid-CooledContainer ESS Series

Model	ESS-C-20-2057A-F1-4H	ESS-C-20-2057A-F1-2H
AC Input/Output
Rated Power	480kW	1000kW
Rated Voltage AC	230V/400V，3P+N+PE
Rated Frequency	50Hz/60Hz
Power Factor	0.8(Leading)~0.8(Lagging)
Battery Parameters
Rated Capacity	2057kWh
DC Maximum Current	84A×8	174A*8
Battery Type	LFP 3.2V / 314Ah
Rated Voltage DC	819.2V
Rated Voltage Range	716.8V~921.6V
Battery Module	51.2V / 16.07kWh
System Configuration	8P256S
General Data
Dimension (W×D×H)	6058mm×2438mm×2896mm
Weight	~28000kg
Cooling Method	Air-Cooling
IP Rating	IP54
Operating Temperature	.-20°C ~ +45°C
Relative Humidity	5% ~ 95%(Non-condensing)
Altitude	≤2000m
Noise Emission	≤75dB
Fire Extinguishing Media	Aerosol
Certificates	IE/CEN62477-1, IEC/EN 61000-6-2,1EC/EN 61000-6-4,1EC62619, G99,G100,AS47772,EN 50549-1,VDE-AR-N 4105,UN38 3

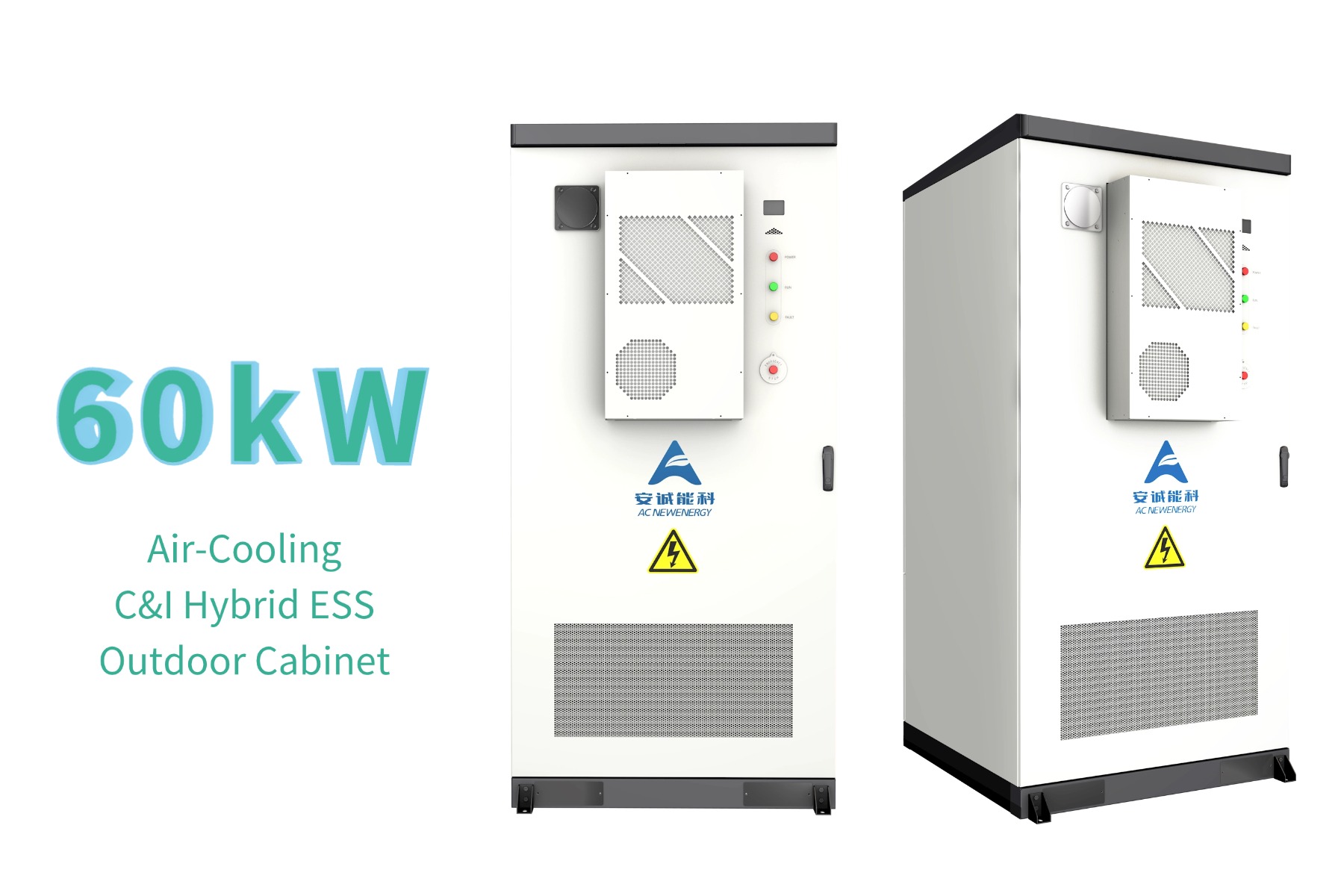

Product Parameters--C&I Hybird ESS Series

Model	ESS-C-JG112A-F1-2H1	ESS-C-JG128A-F1-2H1	ESS-C-JG145A-F1-2H1
PV Input
Max.Input Power	38.4kW*2
Max.Input Current	64A*2
Input Voltage	200V-800V/250Vdc
Battery Parameters
Battery Type	LFP 3.2V 314Ah
Max. Charge/Discharge Current	150A
PACK Configuration	1P16S
PACK Quantity	7 PACK/Cluster	8 PACK/Cluster	9 PACK/Cluster
Voltage Range	324.8V ~403.2Vdc	371.2V~3460.8Vdc	417.6V~518.4 Vdc
Nominal Capacity	112kWh	128kWh	145kWh
AC(On-grid)
Rated Power	48kW	55kW	60kW
AC Maximum Current	76A	87A	96A
AC Rated Voltage	3P/N/PE;230V/400V AC
Frequency	50Hz/60Hz
Power Factor	0.8(Leading)~0.8(Lagging)
THDi	<5%(Rated power)
AC(off-grid)
Rated Power	48kW	55kW	60kW
AC Maximum Current	76A	87A	96A
AC Rated Voltage	3/N/PE;230V/400V AC
Frequency	50Hz/60Hz
Unbalanced Load	1
THDv	<3%(Liner load)
Switch Time	< 20ms
General Data
Dimension (W×D×H)	1500±100kg	1600±100kg	1700±100kg
Weight	1600mm/1320mm/1850mm
Cooling Method	Air cooling
IP Rating	IP54
Operating Temperature	.-20°C ~ +45°C
Relative Humidity	5~95%RH(Non-condensing)
Altitude	≤ 2000m
Noise Emission	≤75dB(TBD)
Fire Extinguishing Media	Aerosol
Certificates	IE/CEN62477-1, IEC/EN 61000-6-2,1EC/EN 61000-6-4,1EC62619, G99,G100,AS47772,EN 50549-1,VDE-AR-N 4105,UN38 3

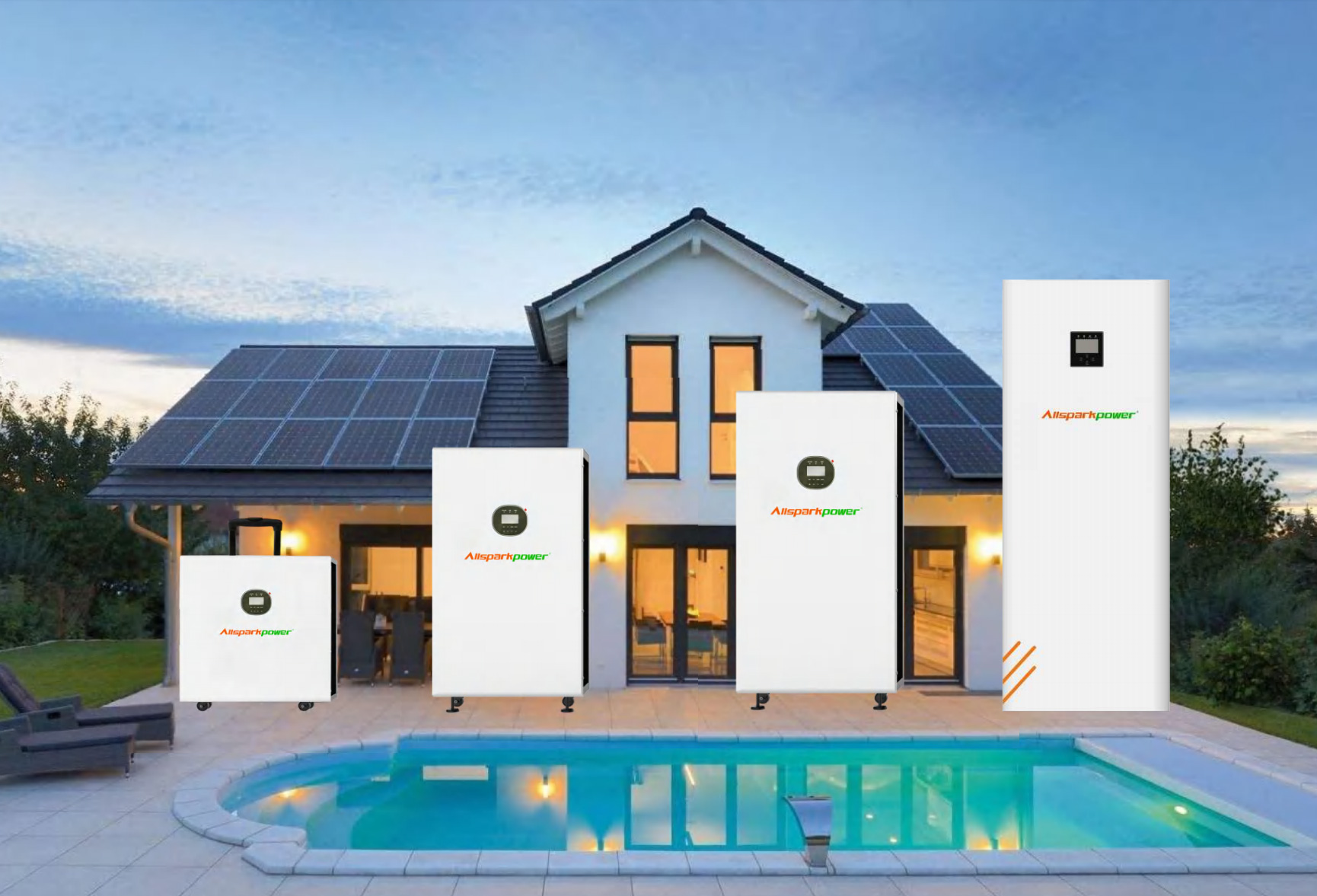

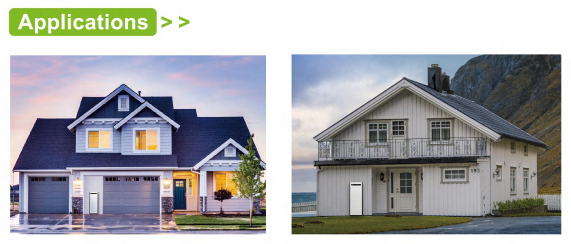

Home Energy Storage Series

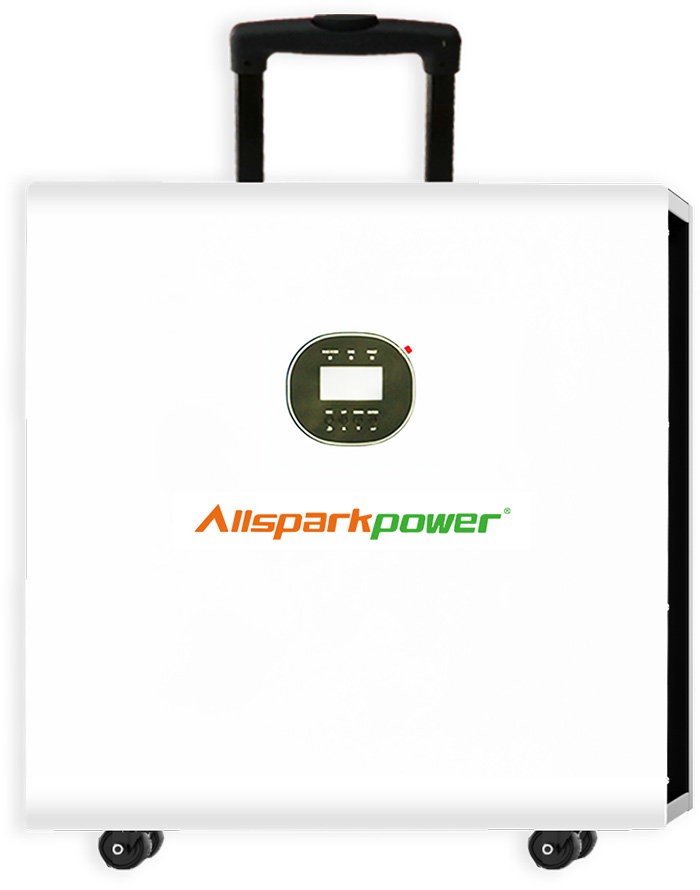

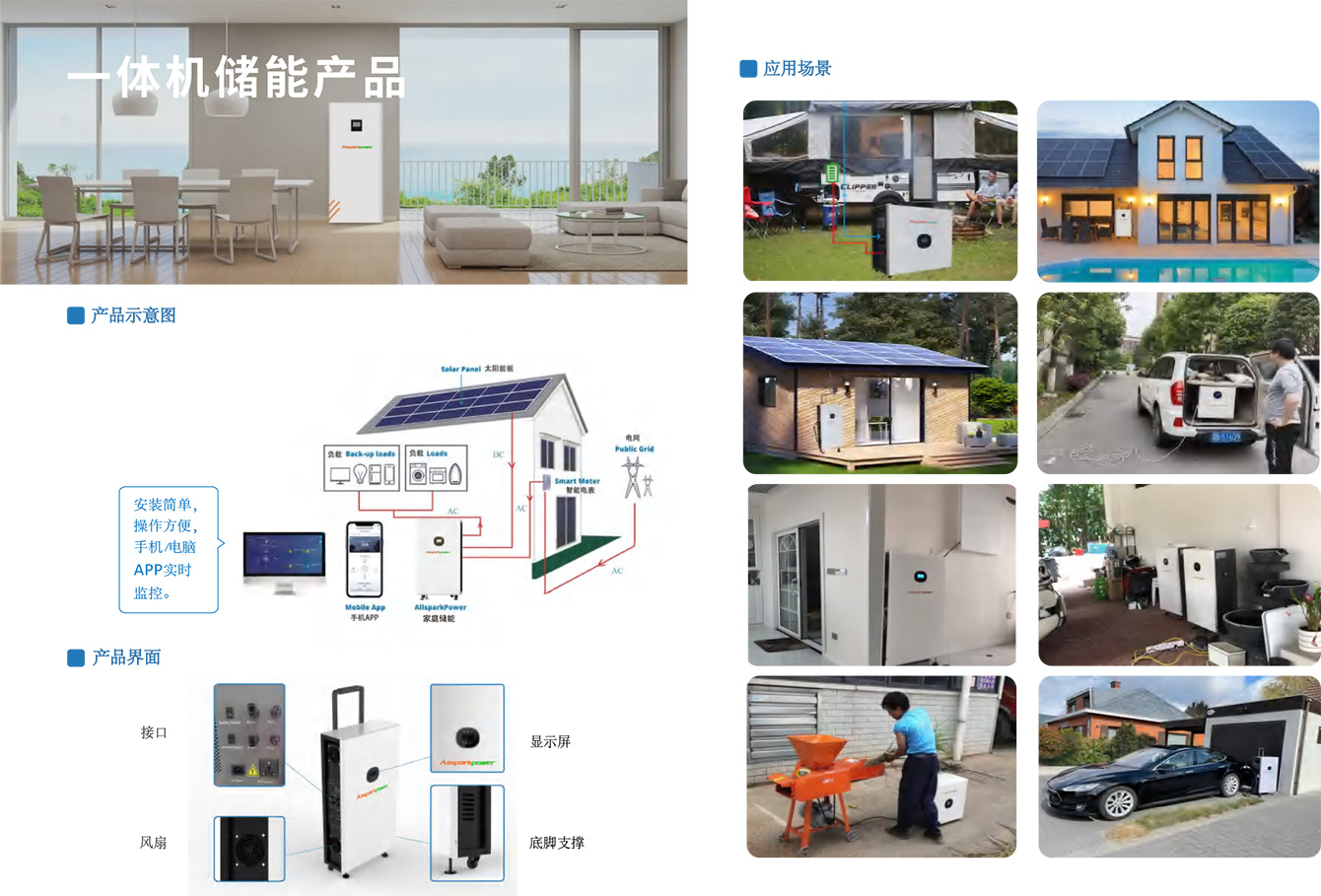

Allsparkpower home storage all-in-one device is an integrated device that includes an MPPT charging controller, lithium battery, BMS, inverter, battery management, energy management, and energy efficiency management system. It easily stores solar energy, is easy to install, plug and play, and greatly reduces dependence on the power grid. Supports charging modes such as photovoltaic, power grid, and wind power. When the power grid is interrupted, it can automatically and quickly switch, provide backup power, and ensure that there is no power outage for 24 hours, providing intelligent, clean, and safe energy for your life.

Learn More

Product Features

Self-powered Home

Home energy Control,Energy Saving

Backup Power

New Enegy’ ECO & Low Carbon

Smart Home Control

Excess Electricity Enables Transactions

Product Parameters-All-in-one Energy Storage System

System Parameter	AP-3036	AP-3048	AP-5072	AP-5096	AP-50144	AP-80192
Storage Ability	3.6kWh	4.8kWh	7.2kWh	9.6kWh	14.4kWh	19.2kWh
Feed-in Type	Single/Split	Single/Split	Single/Split	Single/Split	Single/Split	Single/three phase/Split
PV Max Input Power	4.5kWp	4.5kWp	6kWp	6kWp	6kWp	10.4kWp
PV Side Max Input Voltage	145 - 400 VDC (Single) 60 - 140 VDC (Split)	145 - 400 VDC (Single) 60 - 140 VDC (Split)	145 - 400 VDC (Single) 60 - 140 VDC (Split)	145 - 400 VDC (Single) 60 - 140 VDC (Split)	145 - 400 VDC (Single) 60 - 140 VDC (Split)	100 - 500 VDC
PV Charging Max Current (A)	18A	18A	18A	18A	18A	13A + 13A
AC Charging Max Current (A)	12A	12A	16A	16A	16A	36A
Continuous Output Power	3kW	3kW	5kW	5kW	5kW	8kW
Peak Power	7kW	7kW	10kW	10kW	10kW	16kW
Size（LWH)	560390660mm	560390660mm	5503401130mm	5503401130mm	5504101145mm	7344202008mm
Weight	61kg	72kg	120kg	138kg	178kg	306kg
Operating Temperature	-10℃ - 50℃ / 14℉ - 122℉
Ingress Rating	IP 20/54/65
Warranty	Max 10 years
Compliance	UN38.3,CE, IEC62619, UL1973, UL9540A

Smart String Energy Storage Series

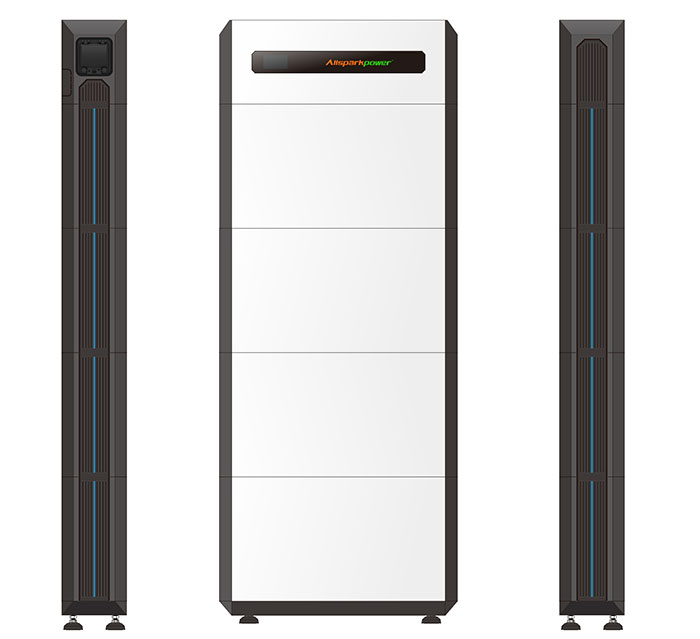

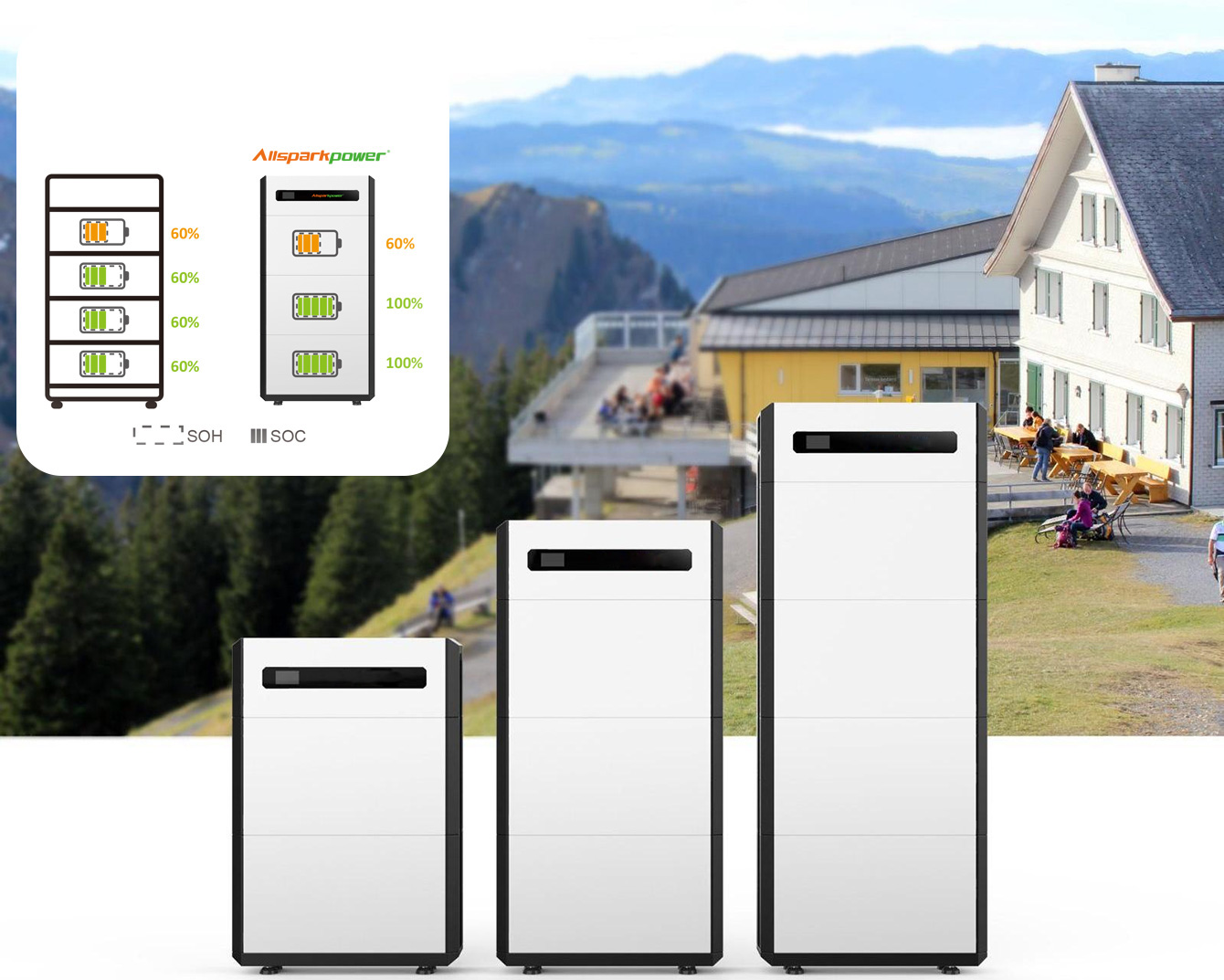

The smart string energy storage system adopts modular design, the battery capacity can be arbitrarily selected, the old and new batteries can be mixed, and each group of batteries can be intelligently managed, improving battery performance, extending battery life, flexible switching, not afraid of power failure, and ensuring household electricity.

Learn More

Product Features

Easy to match

The battery capacity can be freely selected, and new and old batteries can be mixed for use.

High safety performance, allowing you to rest assured

Multiple security protection designs, carefully taking care of your safety.

Longer cycle life

Intelligent management of each group of batteries, improving battery performance and extending battery life.

Short switching time

Flexible switching, not afraid of power outages, ensuring household electricity consumption.

Product Parameters-Smart String Energy Storage System

System Parameter	APB-10-P0	APB-15-P0	APB-20-P0
Feed-inType	LFP	LFP	LFP
Battery nominal energy	10.24kWh	15.36kWh	20.48kWh
Max Charging current	100A	100A	100A
Max Discharge current	100A	100A	100A
Battery Module Parameter
Model	APB-5-V0
Nominal energy	5.12kWh
Nominal Voltage	51.2V
Rated power Ra	2.5kw/5kw
General Parameter
Size（LWH)	685990185mm	6851345185mm	6851700185mm
Weight	109kg	162kg	215kg
IP Rating	IP65
OperatingTemperature	Charge: 0℃ - 55℃; Discharge: -20℃ - 55℃
Compliance	UN38.3,CE,IEC62619,UL1973,UL9540A
